Temperature Calibration Bath ISOCAL 6

The new temperature calibration bath range with interchangeable accessories give greatest ever flexibility;
A complete Calibration Laboratory in One Simple to Use Package

Data Sheets

One Bath

Multi-Functions

	A Metal Block Bath Fast, convenient, mess free sensor calibration
	A Stirred Liquid Bath Replace the metal insert to calibrate odd shaped sensors and gain enhanced performance
	A Stirred Ice Bath On the VENUS models switch to the stirred ice bath to check and log your reference probe
	Black Body Source Need to calibrate radiation pyrometers? Just add the black body source kit
	Surface Sensors To calibrate surface sensors add the special insert / reference thermometer options
	ITS-90 Fixed Points Need accuracy to +/-0.001°C? Then select one of the ISOCAL-6 F.P. Cells and realize ITS-90 fixed points

	Metal Insert Start with the metal insert then add accessories as needed

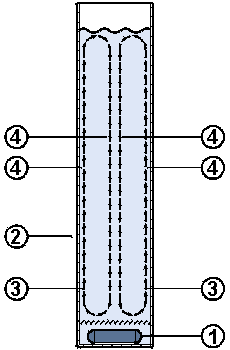

	Liquid Container Allows for odd shaped sensors and potentially gives greater performance. With the Venus models you can also use as a stirred ice bath Magnetic Stirrer: spins exerting centrifugal force Liquid moves to the side of the container Combined action causes the... Flow pattern
	Black Body Source Emissivity greater than 0.995 for the calibration of radiation pyrometers
	Surface Sensor Calibrator Add the special surface kit to allow calibration of surface probes
	Fixed Points The most accurate temperatures are the fixed points of ITS-90, use the ISOCAL-6 F.P. cells to realize fixed points to an accuracy of +/-0.001°C

ISOCAL-6 Model	Temperature Range	Calibration Volume
Europa	-45°C to 140°C	35 x 160mm
Venus	-35°C to 140°C	35 x 160mm
Calisto	30°C to 250°C	35 x 160mm
Oceanus	-25°C to 110°C	52 x 300mm
Slim Cells for the Isocal
ISOCAL-6 Brochure Four Page Data Sheet
